Neglecting laser cutter maintenance shortens equipment lifespan by up to 50%, increases unplanned downtime by 35%, and raises costs by 20%-30%.
Proactive maintenance is key to maximizing performance, extending component life, and ensuring consistent cutting quality—follow this manual to keep your machine running at peak efficiency.
I. Cycle-Based Maintenance Plan: Daily, Weekly, Monthly & Quarterly
Follow this tiered schedule (valid for most fiber/CO2 lasers up to 20kW) to address wear and calibration needs effectively.
1. Daily Maintenance (5-10 Minutes per Shift)
- Wipe the cutting head exterior with a lint-free cloth to remove dust and spatter.
- Inspect the nozzle for spatter buildup or damage (replace if clogged/bent).
- Check assist gas pressure (5-10 bar for carbon steel, 12-20 bar for stainless steel).
- Verify cooling system water level and temperature (20-25°C for fiber, 18-22°C for CO2 lasers).
- Clear scrap from the bed to avoid cutting path interference.
2. Weekly Maintenance (30-45 Minutes)
- Clean the protective lens (see Section II for details) to remove dust and spatter.
- Drain moisture from the air compressor and gas lines to prevent corrosion.
- Lubricate the bed’s linear guides (1-2 drops per guide; avoid over-lubrication).
- Inspect cutting head cables for fraying or loose connections.
- Check beam alignment with a red light pointer (ensure it hits the nozzle center).
3. Monthly Maintenance (1-1.5 Hours)
- Calibrate the laser beam with a professional tool to ensure consistent power (deviation ≤5%).
- Deep-clean the focus lens (replace if scratched/clouded).
- Inspect the bed for scratches, rust, or uneven wear (address immediately).
- Clean/replace laser source cooling filters (clogged filters reduce efficiency by 30%).
- Test emergency stop and safety interlocks.
4. Quarterly Maintenance (2-3 Hours)
- Inspect/clean the laser resonator (CO2) or fiber module (fiber lasers) (follow machine manual).
- Replace the protective lens (every 3-6 months for high-volume use).
- Lubricate all moving parts and check for wear.
- Calibrate cutting speed/power against test cuts (adjust if quality declines).
- Inspect the electrical system for loose wires or overheating.
II. Core Component Maintenance: Step-by-Step Guide
Proper care of lenses, nozzles, bed, and laser source directly impacts performance and lifespan—follow these steps.

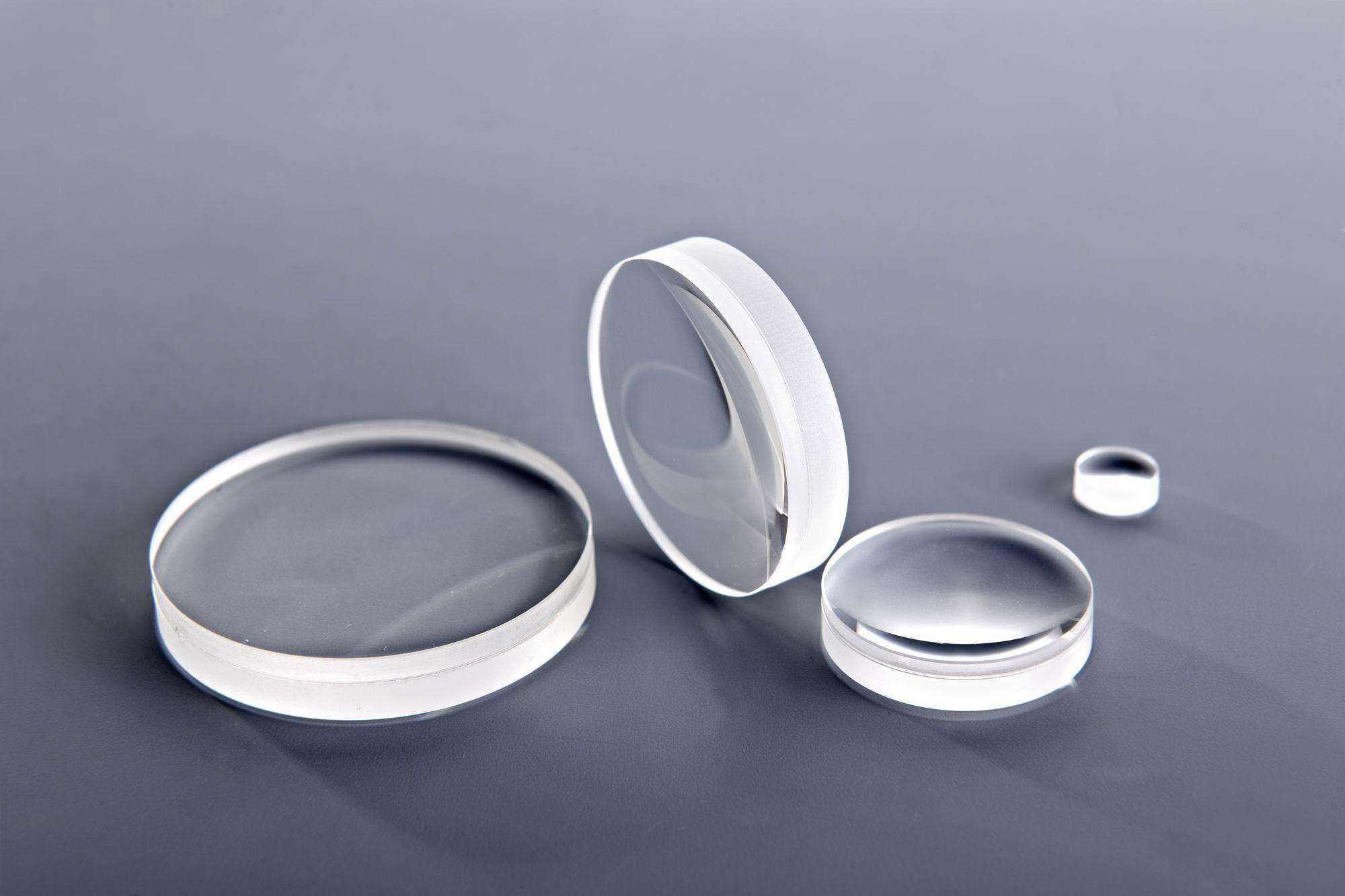

1. Lenses: Cleanliness = Precision
Minor lens contamination reduces efficiency by 20% and shortens life by 50%. Follow these cleaning and replacement steps:
Cleaning Process (Weekly: Protective Lens; Monthly: Focus Lens):
1） Turn off and disconnect power for safety.
2） Remove the lens housing (hex key; avoid touching the lens).
3） Wipe with a lint-free cloth dipped in 99.7%+ isopropyl alcohol.
4） Use a soft non-metallic brush for stubborn spatter, then re-wipe.
5） Air-dry (1-2 minutes) before reinstalling.
Replacement Guidelines:
- Protective Lens: Every 3-6 months (high-volume) or if damaged.
- Focus Lens: Every 6-12 months (fiber) / 4-8 months (CO2), or if cutting quality drops.
- Costs: Protective ($100-$300), Focus ($200-$500)—cheaper than a damaged laser head ($1,000-$5,000).

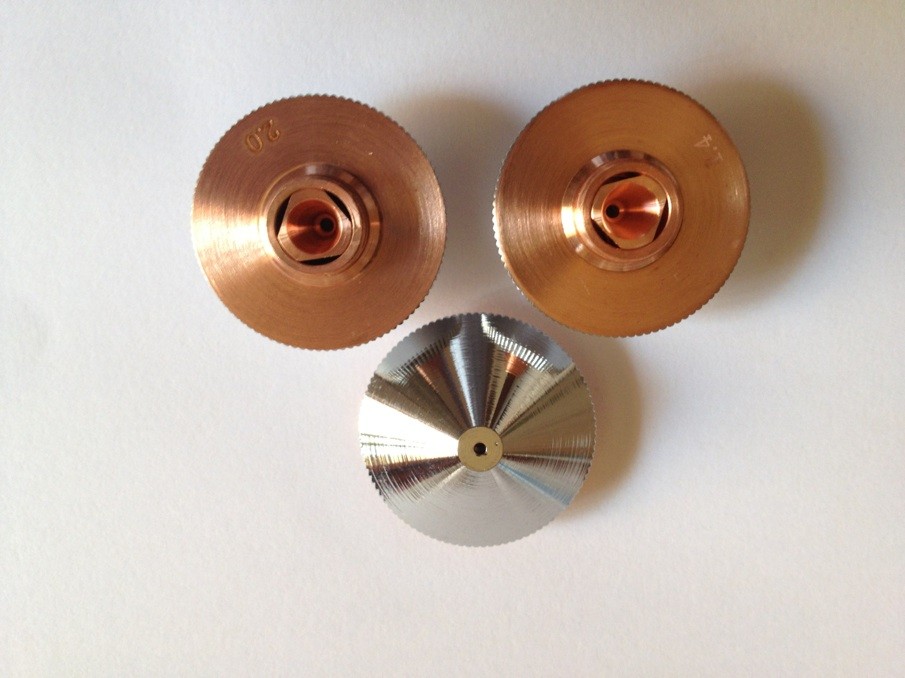

2. Nozzles: Cleanliness & Proper Selection
A clogged/misaligned nozzle reduces speed by 15%-25% and increases spatter. Maintain and select nozzles as follows:
Cleaning Process (Daily Check; Weekly Deep Clean):
1） Remove the nozzle with a nozzle wrench.
2） Use a soft brass brush to remove spatter (avoid scratching).
3） Soak in acetone (10-15 minutes) for tough residue, then rinse and dry.
4） Replace if the opening is damaged.
Nozzle Selection Tips:
- Thin materials (0.5-3mm): 0.8-1.0mm diameter nozzle.
- Thick materials (3mm+): 1.5-2.0mm diameter nozzle.
- Copper for carbon steel (heat-resistant); ceramic for stainless steel (anti-oxide).
- Replace every 2-4 weeks (high-volume); cost: $10-$50 each.
3. Bed: Rust Prevention & Lubrication
- Rust Prevention: Wipe dry after each shift; use rust remover for mild rust, then anti-rust oil (1-2x/month).
- Lubrication: Weekly apply high-temperature lubricant to bed rails/screws (1-2 drops per guide).
- Surface Inspection: Monthly check for scratches/wear; ensure flatness (deviation ≤0.1mm/m).
4. Laser Source: Cooling & Calibration
Proper care extends laser source life to 8-10 years (vs. 4-5 years without maintenance):
- Cooling System: Daily check water level/temperature; use deionized water (replace every 6 months); monthly clean chiller filters.
- Calibration: Monthly align the beam to the nozzle center (deviation ≤0.05mm); check fiber module connections for fiber lasers.
- Professional Servicing: Annual inspection (prevents breakdowns; replacement cost: $10,000-$50,000).
III. 3 Warning Signs Your Laser Cutter Needs Maintenance
1. Unusual Noises
Grinding/squeaking/rattling indicates insufficient lubrication, damaged components, or loose parts. Stop the machine and inspect.
2. Declining Cutting Quality
Uneven edges, burrs, or excessive spatter point to dirty/damaged lenses, clogged nozzles, or misaligned beams. Clean components first, then recalibrate.
3. Error Codes or Warning Lights
Troubleshoot codes like “Low Gas Pressure” (check lines), “Overheating” (clean filters), or “Beam Misalignment” (calibrate)—ignoring them causes permanent damage.
IV. Recommended Maintenance Tools (Low-Cost & Easy to Acquire)
Essential tools (total cost: $50-$150):
- Lint-free cloths, 99.7%+ isopropyl alcohol (lens cleaning)
- Hex key set, nozzle wrench (component removal)
- Soft brass brush (nozzle cleaning)
- High-temperature linear guide lubricant (ISO VG 32)
- Rust remover, anti-rust oil (bed maintenance)
- Red light pointer (basic beam alignment)
Conclusion
Proactive maintenance extends laser cutter lifespan by 50%, reduces downtime by 35%, and lowers costs by 20%-30%. Follow this manual to keep your machine running efficiently. For personalized guidance, contact our laser experts.
