1. Introduction
Aluminum alloys are widely used in automotive, new energy, aerospace and sheet metal industries. Due to high laser reflectivity, high thermal conductivity and viscous molten texture, aluminum easily produces burrs, oxidation marks, thermal deformation and laser back-reflection during fiber laser cutting.
2. Core Cutting Skills for Aluminum
2.1 Power Matching & Anti-Reflection Protection
Match laser power strictly according to plate thickness:

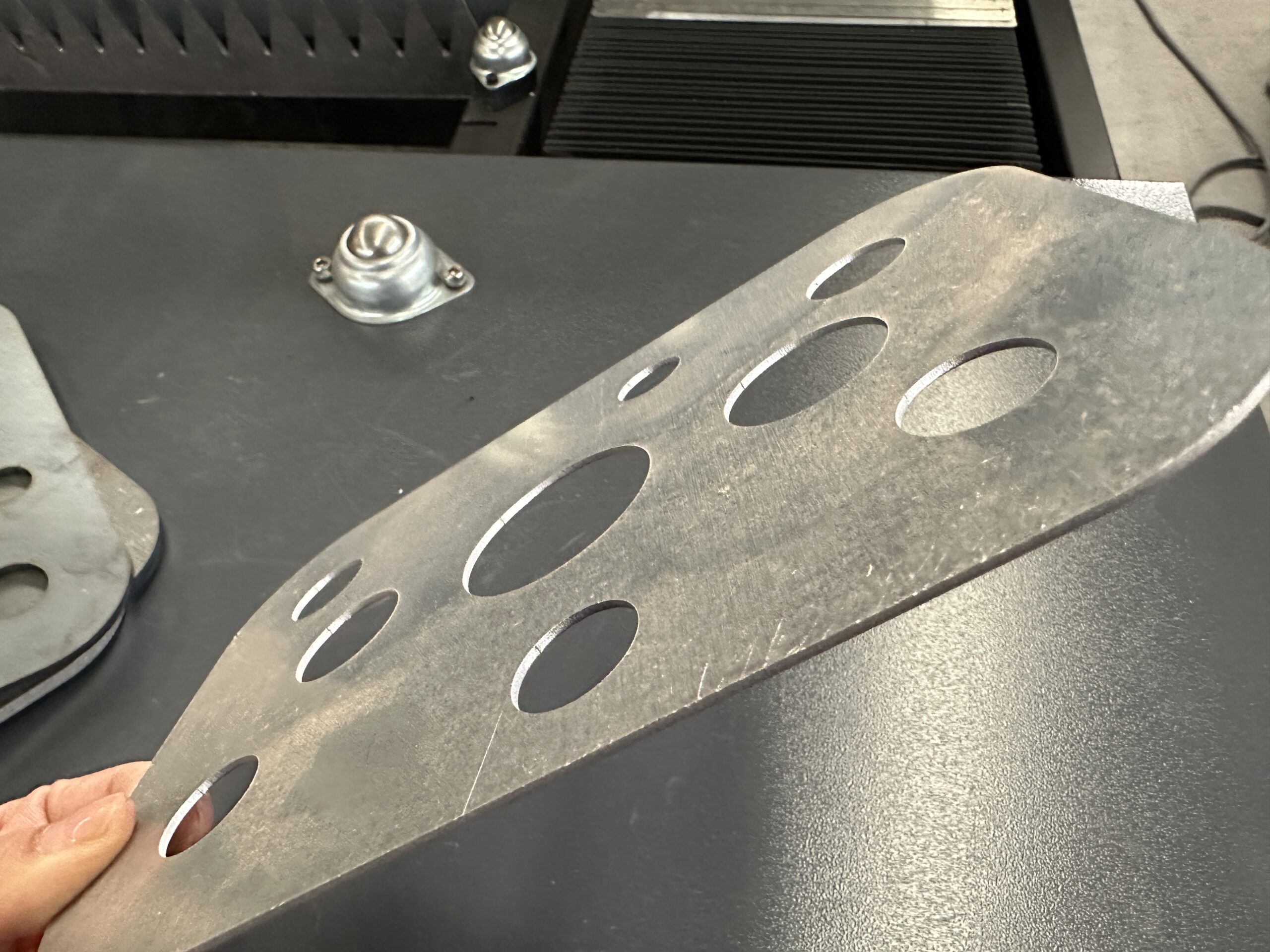

- 1–2mm aluminum sheet: 1.5kW–3kW
- 3–6mm aluminum plate: 5kW–8kW
- Above 6mm thick plate: ≥8kW
Enable the device’s back-reflection protection and Faraday optical isolator to avoid laser damage. Regularly clean protective lenses and calibrate the cutting head to ensure accurate focusing and stable energy output.
2.2 Key Parameter Settings
Negative Focus (Aluminum Exclusive)
Set the focus 1–2mm below the sheet surface or at the lower 1/3 of plate thickness to concentrate laser energy for full penetration and smooth slag removal.
High-Frequency Pulse Mode
Replace continuous laser output with pulse cutting to reduce heat accumulation, shrink heat-affected zones, and prevent workpiece deformation and edge blackening.
Precise Speed Control
Aluminum has a narrow effective cutting speed window. Excess speed causes incomplete cutting; low speed leads to heavy burrs. Always apply thickness-matched cutting speed.
2.3 Auxiliary Gas Application
High-purity nitrogen is the standard gas for precision aluminum cutting.
- Oxygen is prohibited (causes oxidation and burrs)
- Compressed air is only for low-precision processing
Maintain nitrogen pressure at 18–22 Bar depending on plate thickness. High-pressure nitrogen thoroughly flushes viscous molten aluminum to realize zero-burr cutting and reduce post-polishing workload.
2.4 Pre-Processing & Batch Cutting Rules
- Clean surface oil, dust and oxide layers before cutting to avoid laser scattering and defects.
- Conduct trial cutting for new aluminum batches, fine-tune parameters, then start mass production for consistent quality.
3. Common Defects & Quick Fixes
3.1 Edge Burrs
Causes: Insufficient nitrogen pressure, offset focus, improper cutting speed
Solutions: Recalibrate negative focus, adjust standard speed, and increase nitrogen pressure to rated value.
3.2 Oxidized & Black Edges
Causes: Low-purity nitrogen, excessive heat input, poor gas tightness
Solutions: Use high-purity nitrogen, adopt pulse mode, and inspect gas circuit sealing.
3.3 Thermal Deformation
Causes: Overheating and unreasonable cutting paths
Solutions: Appropriately increase cutting speed, apply pulse heat dissipation, and use arc transition for sharp corners.
3.4 Laser Back-Reflection Alarm
Causes: Incorrect focus setting, disabled anti-reflection function, dirty optical lenses
Solutions: Reset aluminum-dedicated focus, enable back-reflection protection, and clean lenses regularly.
4. Cost & Efficiency Optimization Tips
- Cost Saving: Match nitrogen pressure with plate thickness to avoid gas waste while ensuring zero-burr quality.
- Efficiency Improvement: Save customized parameter templates for batch production to eliminate repeated debugging.
- Quality Stabilization: Maintain regular equipment calibration and parameter archiving to reduce defect rates.
5. Conclusion

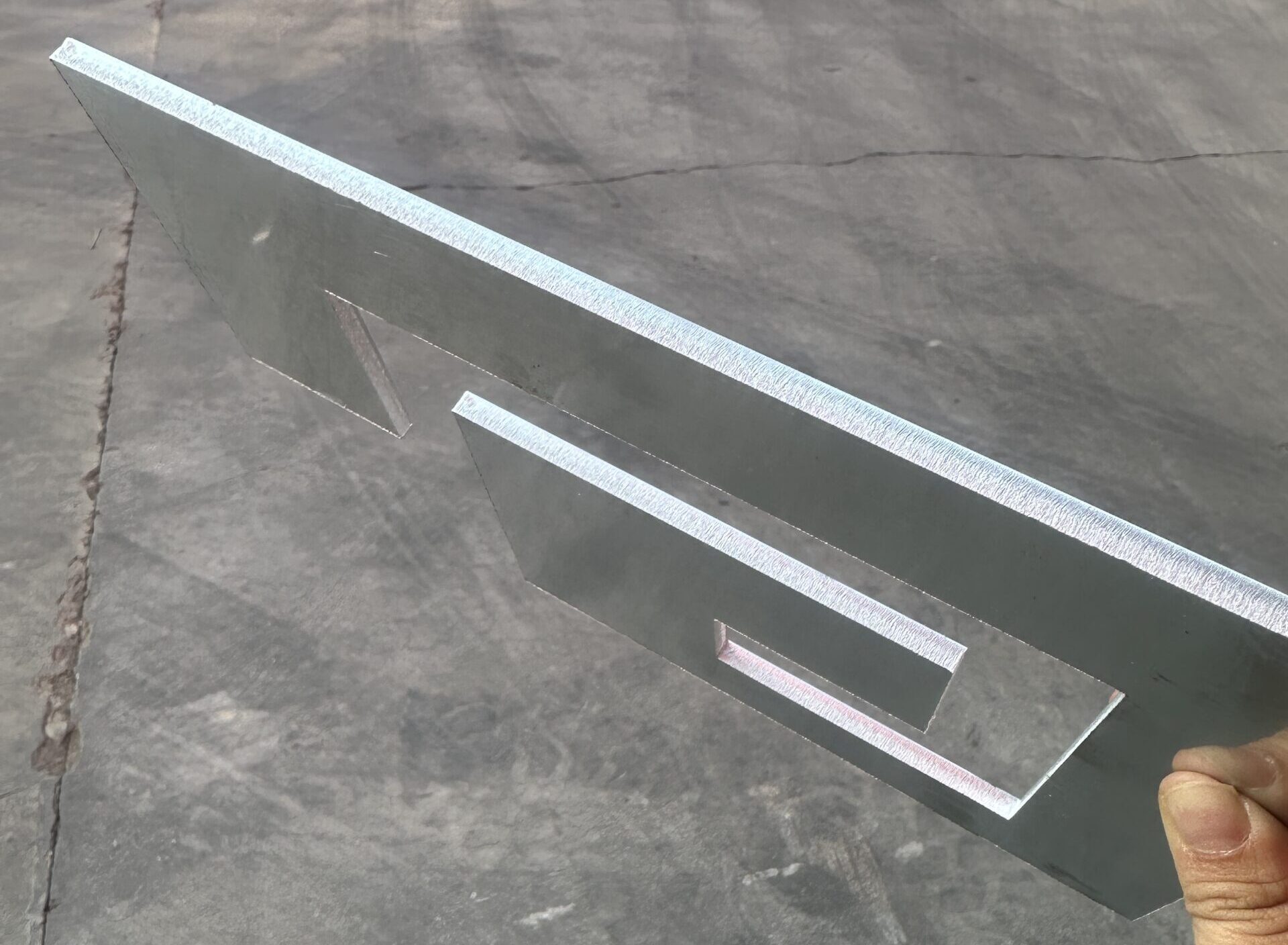

High-quality aluminum fiber laser cutting depends on four core standards: negative focus positioning, high-pressure high-purity nitrogen, pulse heat control, and precise speed matching.
Standardized processing effectively eliminates common defects and equipment risks, supporting stable, high-precision and low-cost aluminum manufacturing.
6. Technical Support
Contact our professional team to obtain the full aluminum laser cutting parameter manual and equipment maintenance checklist.
