Introduction
Modern medical devices are evolving toward miniaturization, minimally invasive use and high biocompatibility. Traditional mechanical cutting and chemical etching fail to meet strict medical manufacturing criteria, commonly causing burrs, deformation, thermal oxidation and contamination.

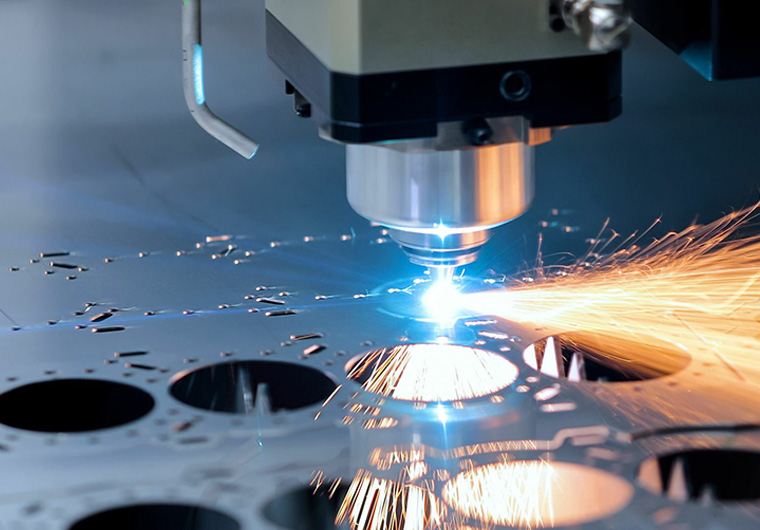

As an advanced non-contact precision processing technology, laser cutting has become a core solution for medical manufacturing. Its ultrafast cold processing delivers micron-level accuracy, smooth cuts and minimal thermal impact, ideal for manufacturing implantable devices, surgical tools, medical polymers and precision electronic components. It greatly elevates the safety and reliability of modern medical equipment.
Core Applications of Laser Cutting in the Medical Industry
1. Interventional and Implantable Medical Devices

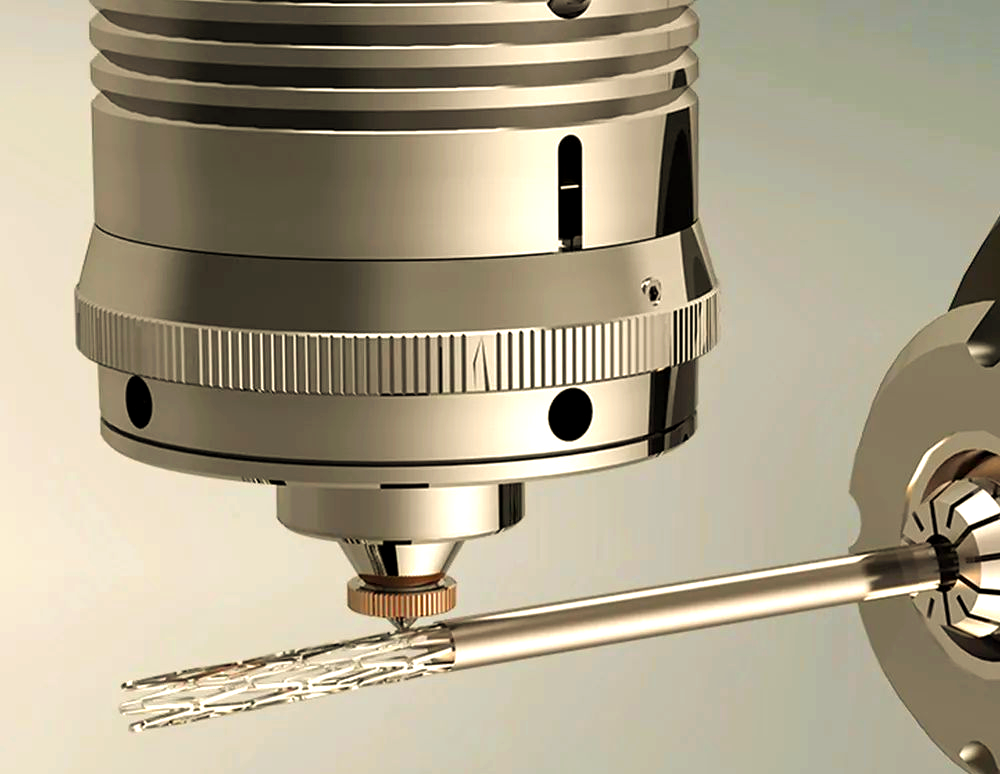

Interventional devices represent the most demanding and mature application scenario for medical laser cutting. Vascular stents, nitinol baskets, guide tubes and micro catheters are generally made of ultra-thin stainless steel, cobalt-chromium and nitinol alloy tubes with wall thicknesses as low as 0.06 mm.
Laser cutting enables one-piece forming of complex hollow and flexible structures with a tolerance within ±0.01 mm. The cold processing mode effectively eliminates recast layers and burrs, requiring only simple post-polishing to meet ISO 10993 biocompatibility standards. It is also applicable to the precision cutting of biodegradable polymer stents for temporary vascular repair.
2. Minimally Invasive Surgical Instruments
Laparoscopic, arthroscopic and ENT surgical instruments feature tiny, irregular structures that require stress-free and deformation-free processing. Ultrafast laser cutting achieves sharp, clean edges on titanium alloy and medical stainless steel components such as minimally invasive blades, elastic clips and deep cavity surgical shafts.
With digital mold-free processing, the technology supports rapid prototyping and small-batch customization of special surgical tools, greatly shortening R&D and production cycles.
3. Medical Polymer and Flexible Material Processing
A wide range of medical flexible materials, including silicone, PET, PI and ePTFE films, are essential for catheters, dialysis membranes, sterile dressings and flexible monitoring electrodes. Traditional thermal cutting easily causes edge carbonization, melting and seal failure.
Ultraviolet ultrafast laser cold processing solves this pain point perfectly, achieving precise cutting and micro-hole processing without thermal damage, ensuring the cleanliness, airtightness and biological safety of disposable medical consumables.
4. Orthopedic Rehabilitation Custom Equipment
Laser cutting provides flexible and personalized manufacturing solutions for orthopedic braces, rehabilitation supports and titanium alloy repair gaskets. Combined with 3D scanning data, it quickly produces lightweight, highly fitted rehabilitation devices tailored to patients’ physical conditions, offering higher comfort and shorter customization cycles than traditional mold manufacturing.
5. Medical Electronic Precision Components
High-precision laser micro-cutting is widely used for manufacturing micro sensors, detection grids, probe components and flexible electronic films for wearable medical devices. It supports micron-level slotting and trimming, ensuring the stability and sensitivity of portable diagnostic and monitoring equipment.
Unique Advantages of Laser Cutting for Medical Manufacturing
Ultra-high Precision: Achieves ±0.01 mm positioning accuracy and ultra-narrow kerf processing, meeting the miniaturization requirements of high-end medical devices.
Cold Processing with Zero Thermal Damage: Ultrafast laser technology restricts heat diffusion effectively, avoiding oxidation, carbonization and residual metal debris to ensure clinical safety.
Digital Flexible Production: Mold-free processing enables fast switching between different product models, adapting to both mass production and customized R&D sampling.
Full Material Compatibility: Compatible with medical metals, biodegradable polymers, flexible films and special ceramic materials to cover full-scenario medical manufacturing needs.
Industry Trends & Conclusion
Driven by minimally invasive and wearable healthcare advancements, medical manufacturing is advancing toward ultra-precision, zero-defect intelligent production. Ultrafast laser cold processing is gradually replacing traditional methods, becoming the optimal choice for high-end medical component production.
We offer professional, customized laser cutting solutions for the medical industry. With advanced ultrafast laser technology and rich practical experience, we empower medical manufacturers to improve efficiency, enhance product quality and accelerate high-performance medical device innovation worldwide.
