Rolled Coil Steel Fiber Laser Cutting Machine

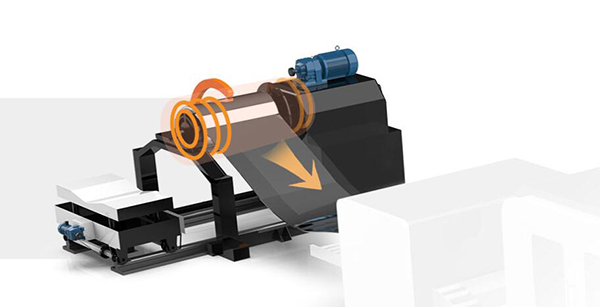

Uncoiling Machine

  • The uncoiler unwinds the roll material, and the width of the loaded coil material is 100-1300mm;
  • the load is 10000kg.

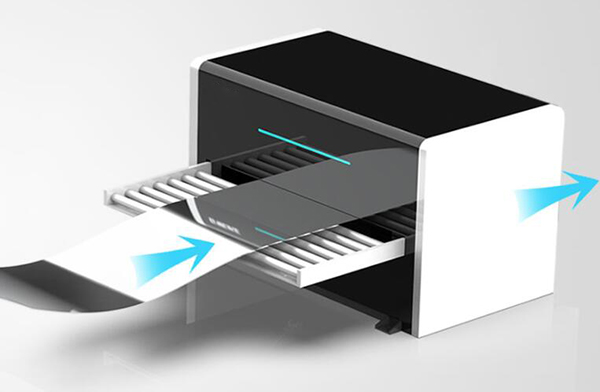

  • leveling feeder leveling the material, adjustment accuracy of correction amount: ±0.01.
  • The bed adopts a gantry dual-drive structure, imported screw rods and linear guide rails,
  • stable transmission, high precision, and online rotation of the hobbing,
  • which ensures high efficiency, high quality, time and labor saving of material processing ,
  • Improve material utilization.
  • Machine Advantage

  • Hign material utilization

    One key for any piece of material is processing,programming forms the best material discharging

  • mode,realize the cutting of the net material,and improves the utilization rate of the plate.
  • Free-form cutting

    It can monitor the running range of the beam and cutting parts throughout the process,

  • and quickly feedback to stop the period,Double protection with fixed limits
  • can greatly improve equipment and personal safety and reduce the risk of customer use
  • Industry Applications

    fiber laser cutting machine can carry up to 4000W laser power, so cutting some

  • thick plate, it is a very good choice. For example, agricultural machinery,
  • textile machinery, food machinery and construction machinery
  • and other large machinery and equipment manufacturing,
  • usually use high power fiber laser cutting machine for processing.

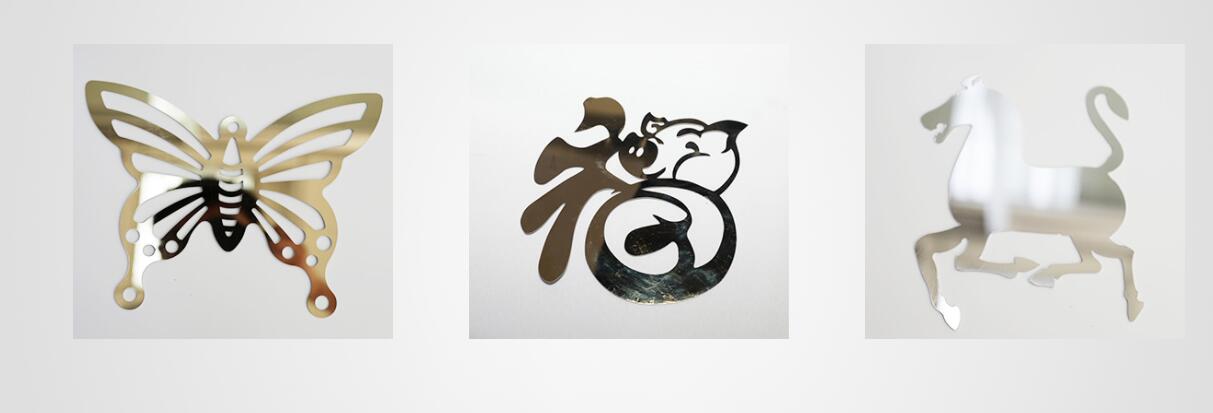

  • Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy,
  • titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
  • Technical Parameters

    Machine model BKJ-F3015MB
    Laser power 1000W/2000W//3000W/4000W(Optional)
    Working area 3000mm x 1500mm
    Dimensions (5480+8034)*4850*(2650+300)mm
    Repeat positioning accuracy ±0.03mm
    Maximum speed 120m/min
    Max. acceleration 1.5G/2.0G
    Voltage and frequency 380V 50Hz/60Hz
