Table Surface:T-slot & vacuum work table
Frame:New type thicker and bigger heavy duty welded frame and gantry
X, Y Structure:Sweden ABBA #20 linear guide
Helical rack gear transmission for X,Y axis
Z Structure:Taiwan TBI ball screw for Z axis
Spindle Power:2 sets 3kW water cooling spindle
Driver & Motor:FL118 stepper motor and YAKO2811 bigger and stronger driver
Lubrication system:Manual lubrication system
Inverter:3.7kW Fuling inverter

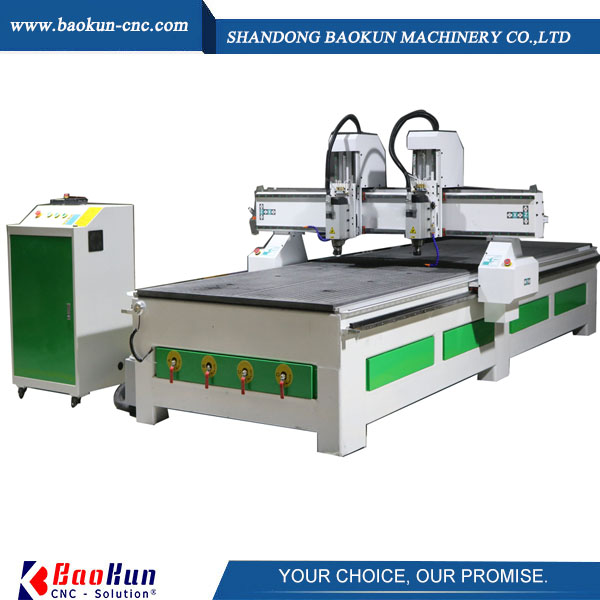

CNC Router Machine with two spindles is customized for changing the tools within 2-4 pieces.
It’s not only economic, but also can realize automatic tool change,
save the time of manual tool change and improve the working speed and precision.
And it can cut two work pieces at the same time to reach the same effect.
What’s more, this two spindles cnc rotuer machine could mirror-sculpture (same engraving path, but in opposite directions) by changing the cables, which is widely used for door making.
| Working Size: | 1300mm*2500mm*200mm |
| Body structure: | Steel tubes |
| X, Y Structure: | rack and pinion drive,Z Structure:Ball Screw/option gear wheel |
| X, Y Resolution: | <0.01mm |
| Max Moving Speed: | 32000mm/min |
| Max Engraving Speed: | 20000mm/min |
| XYZ traveling positioning accuracy: | 0.03/300mm XYZ |
| repositioning accuracy: | 0.03mm |
| Spindle power: | 3kw/4.5kw/5.5KW (can be choices) |
| Spindle Speed: | 24,000rpm |
| Table style: | T-slot table (option vacuum table) |
| Dust collection: | Can add or not |
| Voltage: | AC220V/50HZ/60HZ,380V/50HZ |
| Drive type: | Stepper (Option servo) |
| Working Dictate: | G Code , |
| HPGL Operating system: | DSP control system |
| Interface: | USB |
| Flash memory: | 128M(U Disk) |
1. Equipped with two spindles, which can work independently to promote the working efficiency.
2. Adopting DSP control system, it is easy to learn and master.
3. With new type thicker and bigger heavy duty welded frame and gantry, the machine is more durable.
4. We provide customized services and full sets of teaching videos for all users.
